GP-serie

GP50

Multi-Purpose Handling robot with 50 kg Payload

Overview

The MOTOMAN GP50 is a highly versatile 6-axis industrial robot with 50 kg payload, 2.061 mm reach, and an outstanding repeatability of +/- 0.03 mm.

The GP50 robot is offering a perfectly tuned payload / speed / wrist allowable moment combination, for impressive speed and acceleration performance. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices.

A version with high IP65/67 (dust & liquid protection) is available, for operation in harsh environments.

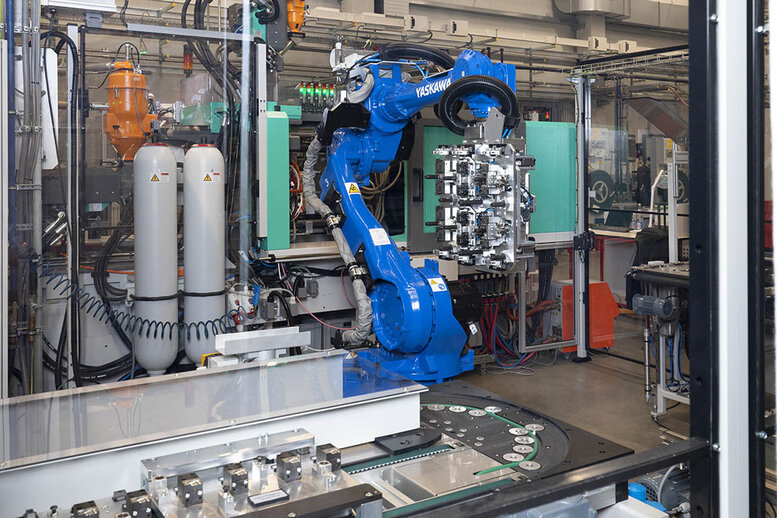

The GP50 is perfect for a wide range of applications, including machine tending, material handling, material removalassembly, additive manufacturing, dispensing and grinding/polishing.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 50 kg
  • Max. Working Range
  • 2061 mm
  • Repeatability
  • 0.03 mm
  • Weight
  • 570 kg
  • Power Supply
  • 4 kVA
  • Maximum Speed S Axis
  • 180 °/s
  • Maximum Speed L Axis
  • 187 °/s
  • Maximum Speed U Axis
  • 187 °/s
  • Maximum Speed R Axis
  • 250 °/s
  • Maximum Speed B Axis
  • 250 °/s
  • Maximum Speed T Axis
  • 360 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
