GP-serie

GP225

Multi-Purpose Handling Robot with 225 kg Payload

Overview

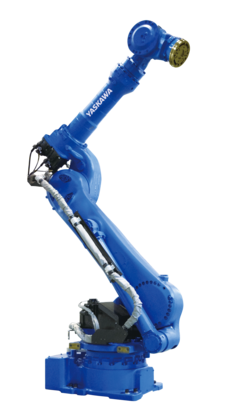

The MOTOMAN GP225 handling robot provides a payload of 225 kg and a maximum reach of 2,702 mm, combined with an excellent repeatability precision of +/- 0,05 mm.

This six-axis GP225 robot provides fast and accurate performance to boost productivity for high-payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. A heavy mechanical balancer is not required any more, and latest high performance Sigma7 servo drive technology is leading to fast axis speeds and powerful acceleration. A wrist with high moment and inertia ratings enables the GP225 robot to efficiently handle larger and heavier payloads for superior performance.

For use in harsh environments, a GP225 version with high IP65/67 Protection (dust & liquid proof) is available.

The GP225 is perfect for a big variety of applications, such as Material Handling, (Remote) Laser Welding, Spot Welding, Press Tending and Material Cutting/Trimming.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 225 kg
  • Max. Working Range
  • 2702 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 1080 kg
  • Power Supply
  • 5 kVA
  • Maximum Speed S Axis
  • 120 °/s
  • Maximum Speed L Axis
  • 97 °/s
  • Maximum Speed U Axis
  • 115 °/s
  • Maximum Speed R Axis
  • 145 °/s
  • Maximum Speed B Axis
  • 145 °/s
  • Maximum Speed T Axis
  • 220 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
