AR-serie

AR1440

6-Axis Arc Welding Robot with 1.440 mm reach

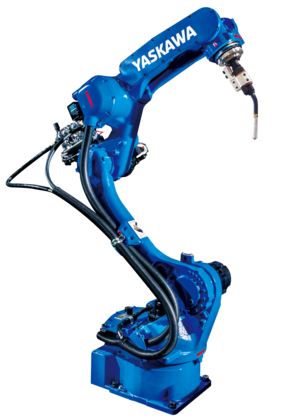

6-osiowy robot MOTOMAN AR1440 | © Yaskawa Polska

Overview

The six-axis MOTOMAN AR1440 is our most popular arc welding robot - it is simply the world reference in robotic arc welding, thermal cutting and other path-related applications. It combines precision, performance and functionality in a way which made MOTOMAN welding robots superior over the last decades. The AR1440 allows you to achieve optimal welding results even under extremely difficult conditions.

With a high payload of up to 12 kg and a wide working range of 1,440 mm this robot is well suited for any kind of professional welding equipment, process or workpiece. The bended arm design and hollow arm structure allows integrated torch cabling and avoids collisions.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 12 kg
  • Max. Working Range
  • 1440 mm
  • Repeatability
  • 0.02 mm
  • Weight
  • 150 kg
  • Power Supply
  • 1.5 kVA
  • Maximum Speed S Axis
  • 260 °/s
  • Maximum Speed L Axis
  • 230 °/s
  • Maximum Speed U Axis
  • 260 °/s
  • Maximum Speed R Axis
  • 470 °/s
  • Maximum Speed B Axis
  • 470 °/s
  • Maximum Speed T Axis
  • 700 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
