GP-serie

GP12

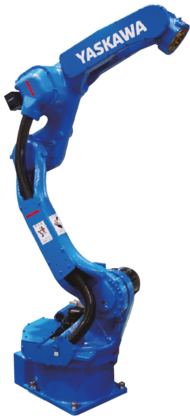

6-Axis Handling Robot with 12 kg payload

Overview

The GP12 is a highly versatile 6-axis industrial robot with 12 kg payload, 1440 mm reach and outstanding repeatability of +/- 0.02 mm.

You will achieve high transfer rates with this extremely fast and efficient GP12 robot, offering a perfectly tuned payload / speed / wrist allowable moment combination. Designed with the latest YASKAWA Sigma7-Servo Motor Generation, the GP12 offers improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient - media cables are guided through the hollow arm and wrist structure.

This robot is also available with high IP65/67 dust & liquid protection to operate in harsh environments.

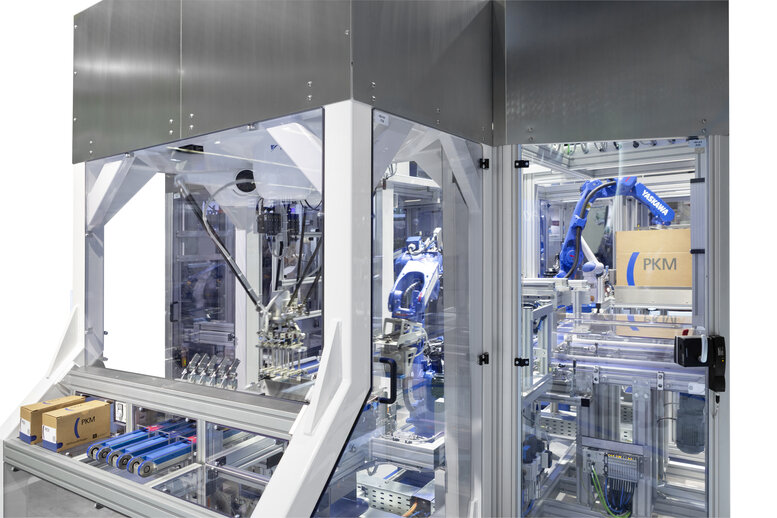

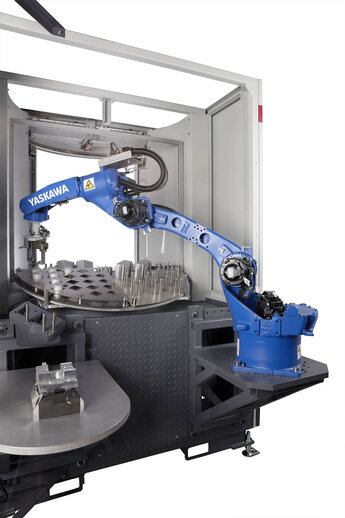

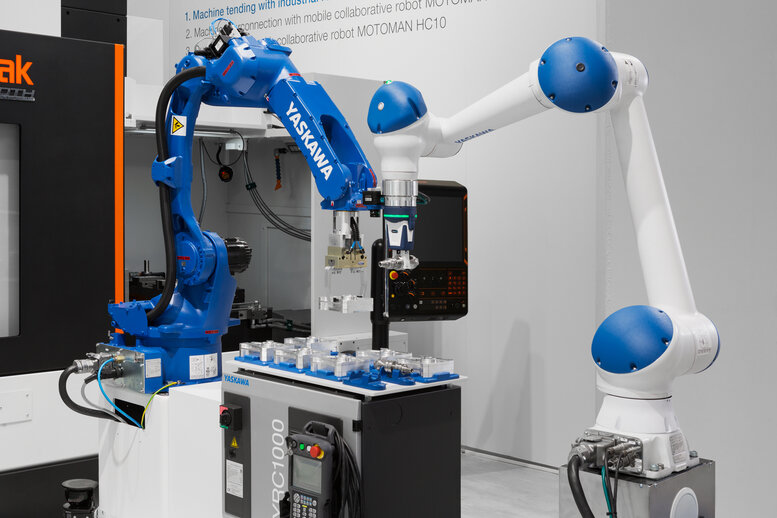

The GP12 is perfect for a wide range of applications, including machine tending, material handling, assembly, additive manufacturing, dispensing, grinding/polishing and quality inspection. Also in the field of e-CommerceConsumer Good Logistics and Postal Automation, the GP12 is an attractive candidate for outstanding throughput, in combination with Intelligent Machine Vision.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 12 kg
  • Max. Working Range
  • 1440 mm
  • Repeatability
  • 0.02 mm
  • Weight
  • 150 kg
  • Power Supply
  • 1.5 kVA
  • Maximum Speed S Axis
  • 260 °/s
  • Maximum Speed L Axis
  • 230 °/s
  • Maximum Speed U Axis
  • 260 °/s
  • Maximum Speed R Axis
  • 470 °/s
  • Maximum Speed B Axis
  • 470 °/s
  • Maximum Speed T Axis
  • 700 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
